Snap-On pipe clip, OPDZ 6 mm grey (OZ048) | | M20 / PG13,5
morepic-1

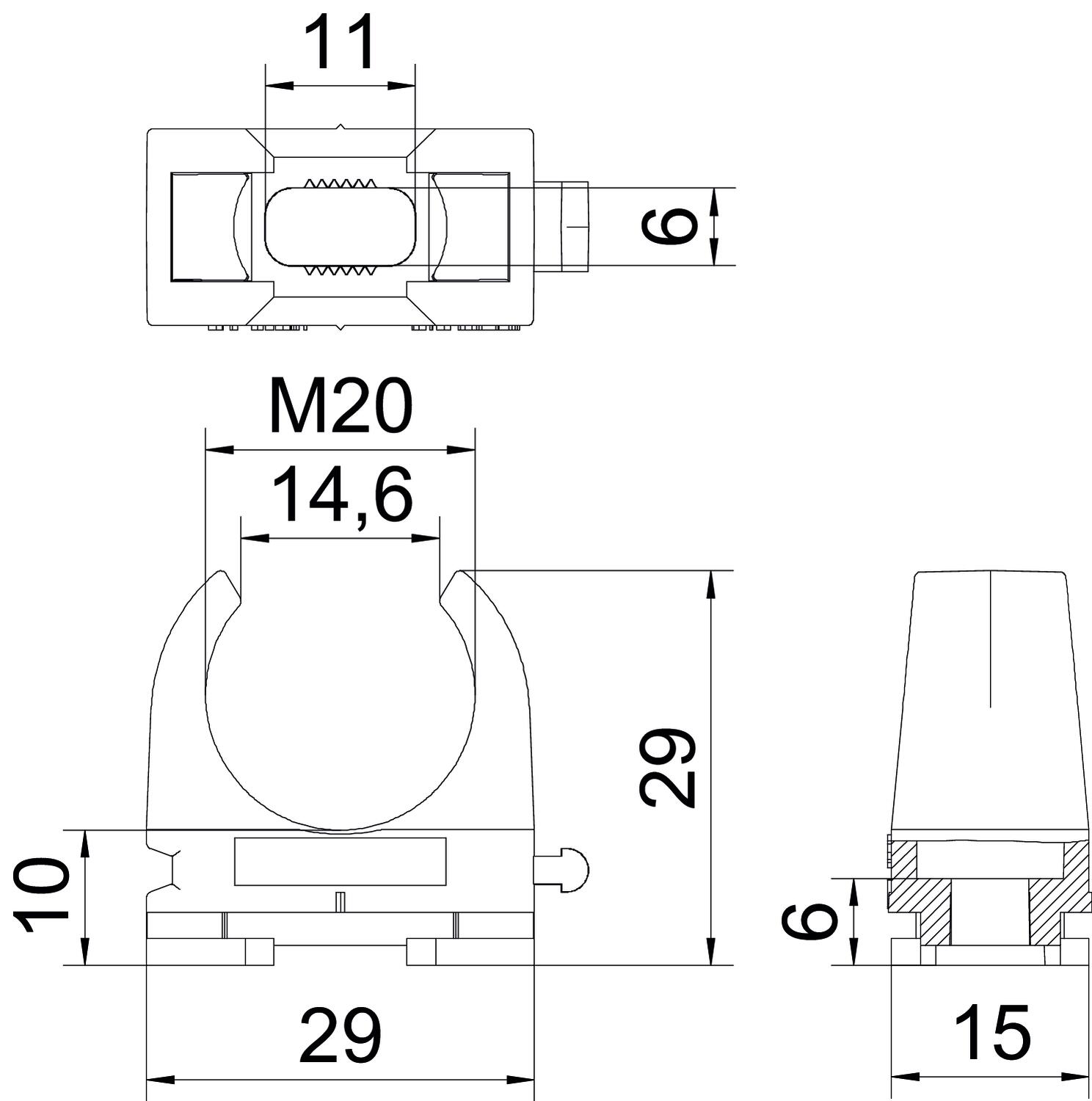

Snap-On pipe clip, OPDZ 6 mm grey (OZ048)

Item no. 981924

Product description

Product description

For fixing conduit pipes.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Polypropylene
  • Halogen-free
  • Gewindegröße Rohr M20
  • Gewindegröße Rohr PG13,5
Technical data

Technical data

Closed no
Colour Light grey; RAL 7035
Dimension 20-21mm
Drill hole 5 mm
Expandable yes
Fastening hole 5 mm
for pipe diameter 20-21
For pipe diameter, max. 21 mm
For pipe diameter, min. 20 mm
Material Polypropylene
Nominal size/text M20 / PG13,5
Number of cables/pipes 1
Thread metric 20
UV-resistant no
With inlay no
All types

All types

Types Nominal size/text Item no. Quantity SSU
OZ048 OPDZ M16 / PG9 981902
100 piece
OZ048 OPDZ PG11 981910
100 piece
OZ048 OPDZ M20 / PG13,5 981924
100 piece
OZ048 OPDZ PG16 981937
100 piece
OZ048 OPDZ M25 981950
50 piece
OZ048 OPDZ M32 981958
50 piece
OZ048 OPDZ M40 981960
30 piece
OZ048 OPDZ M50 994628
30 piece
OZ048 OPDZ M63 994629
20 piece
