Mini-universal connector with lever 8-pin (EM129) 8
morepic-1

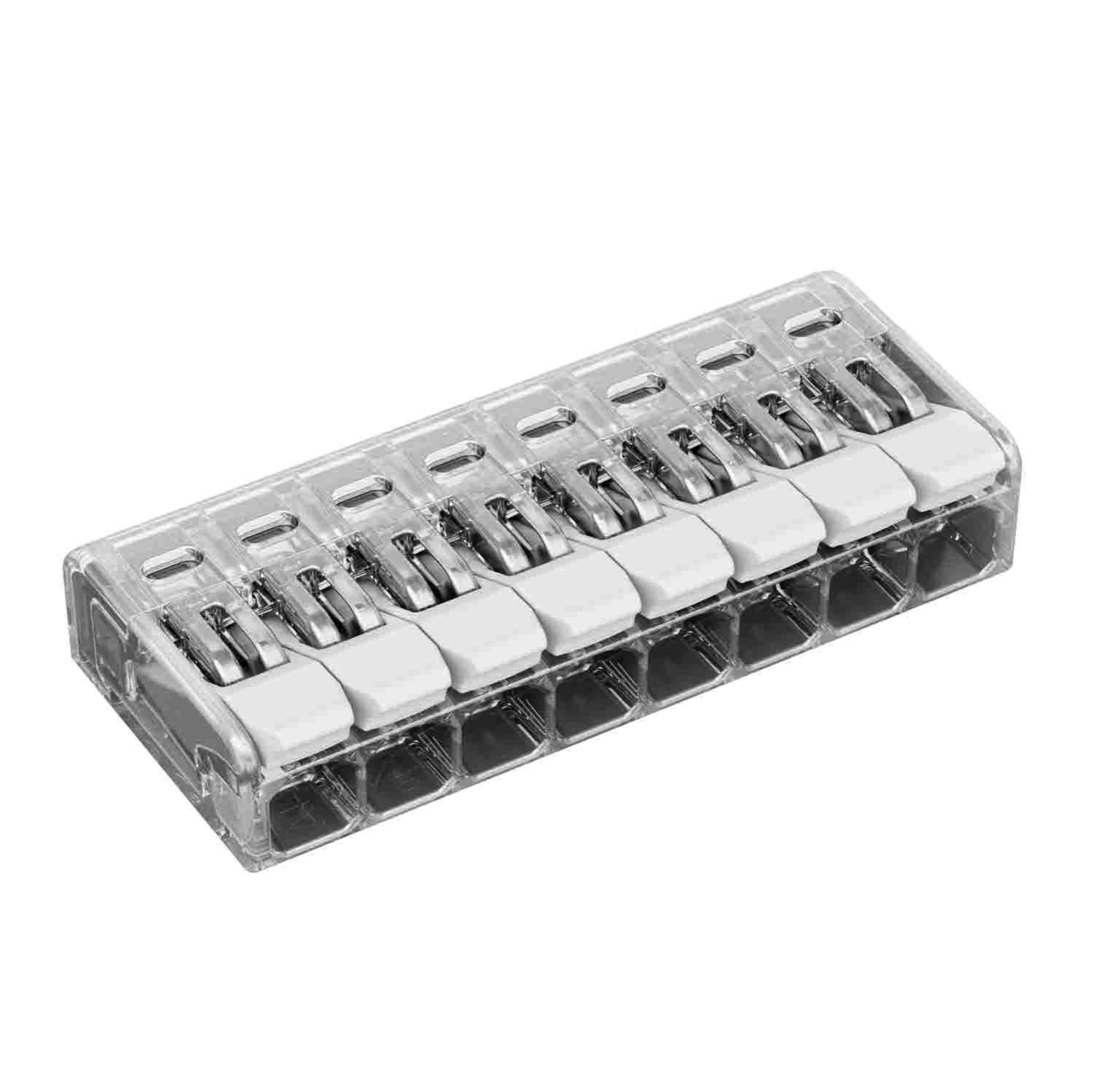

Mini-universal connector with lever 8-pin (EM129)

Item no. 905198

905198 / EM129 8
8
Product description

Product description

To connect conductors in connection sockets, junction boxes, canopies or renovation sockets.
  • Nominal voltage 450 V
  • Polycarbonate
  • Halogen-free
Technical data

Technical data

Colour Transparent
Connectable conductor cross-section, multi-wire, max. 2,5 mm²
Connectable conductor cross-section, single-wire, max. 2,5 mm²
Dimension 0,2-2,5mm²
Material Polycarbonate
No. of terminals 8
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 0,2 mm²
Nominal current 24 A
Nominal voltage 450 V
Number of poles 8
Number of terminals 1
Stripping area AWG, max. 11
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent yes
With actuating levers yes

Dimensions

Height 8,5 mm
Length 16,3 mm
Width 38 mm
All types

All types

Types Number of poles Item no.
EM129 8 8 905198
Downloads

Download

Declaration of conformity EM129 8 / 905198 , 0.13MB , pdf
