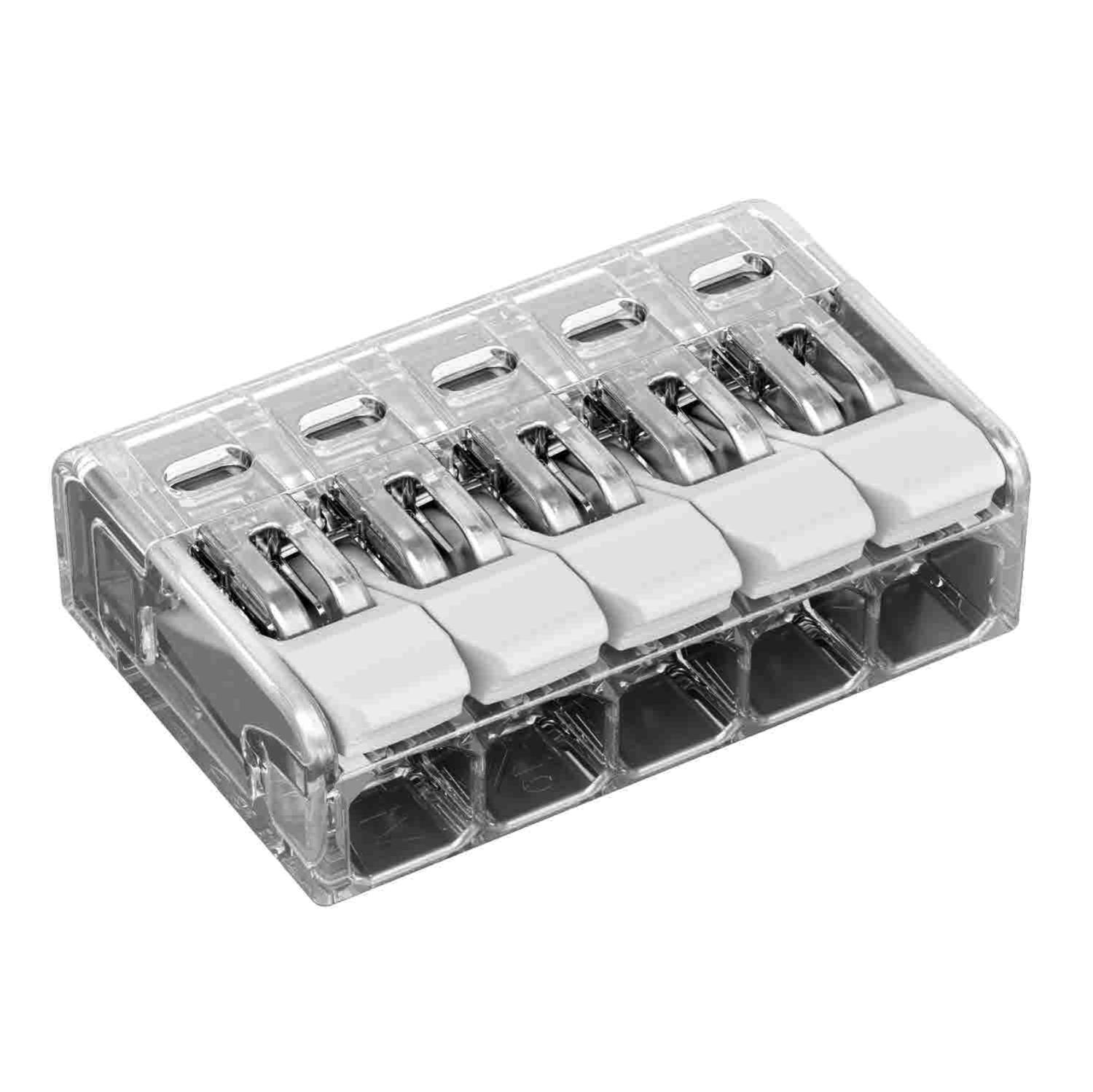

Mini-universal connector with lever 5-pin (EM129)

Item no. 905197

905197 / EM129 5
5
Product description
Product description
To connect conductors in connection sockets, junction boxes, canopies or renovation sockets.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Verband der Elektrotechnik, Elektronik und Informationstechnik
  • Nominal voltage 450 V
  • Polycarbonate
  • Halogen-free
Technical data

Technical data

Colour Transparent
Connectable conductor cross-section, multi-wire, max. 2,5 mm²
Connectable conductor cross-section, single-wire, max. 2,5 mm²
Dimension 0,2-2,5mm²
Height 8,5 mm
Length 16,3 mm
Material Polycarbonate
No. of terminals 5
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 0,2 mm²
Nominal current 24 A
Nominal voltage 450 V
Number of poles 5
Number of terminals 1
Stripping area AWG, max. 11
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent yes
Width 24,5 mm
With actuating levers yes
All types

All types

Types Number of poles Item no. Quantity SSU
EM129 5 5 905197
50 piece
Downloads

Download

EU declaration of conformity EM129 5 / 905197 , 0.13MB , pdf
