Mini-universal connector with lever 3-pin (EM129) 3
morepic-1

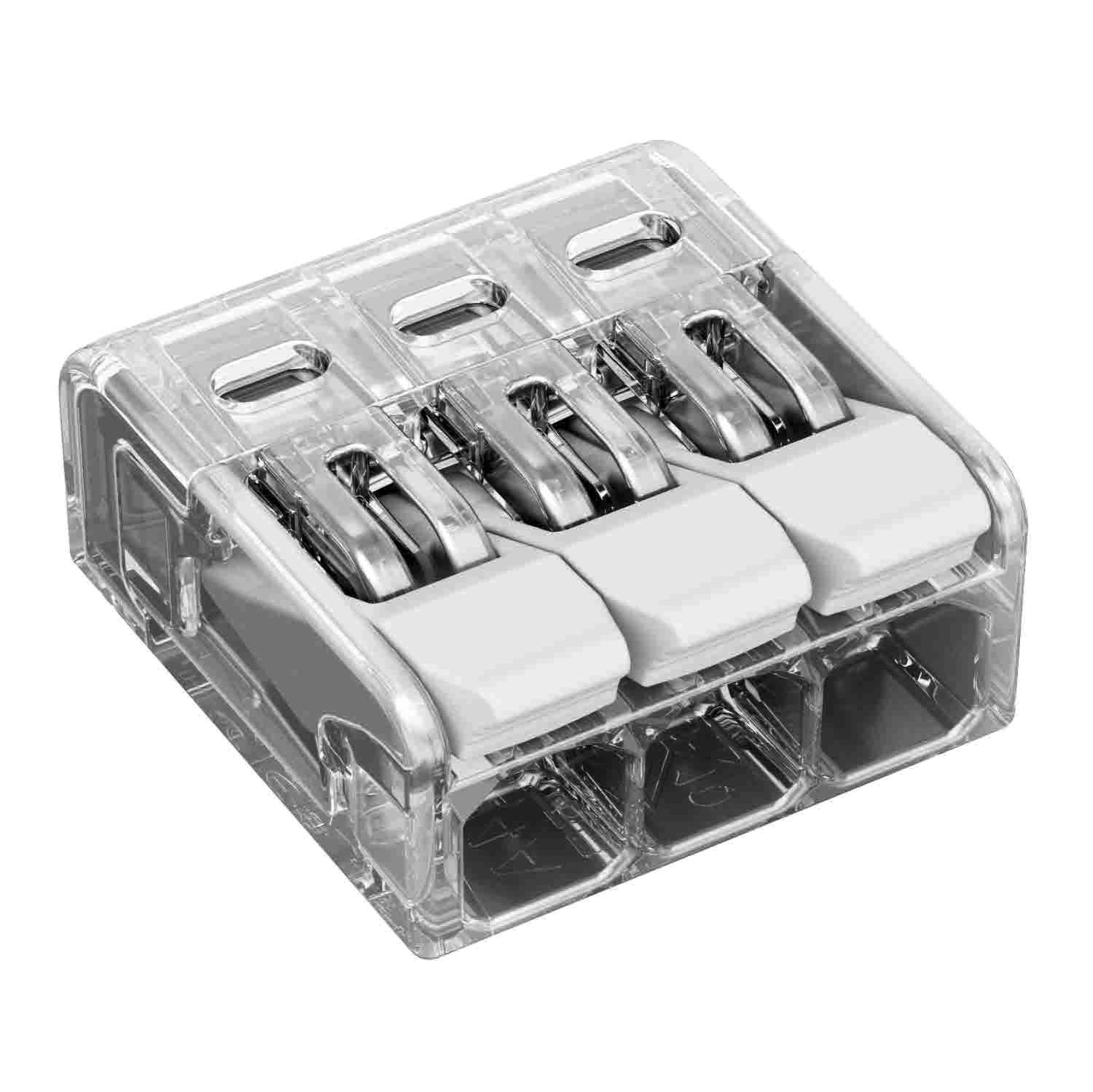

Mini-universal connector with lever 3-pin (EM129)

Item no. 905196

905196 / EM129 3
3
Product description
Product description
To connect conductors in connection sockets, junction boxes, canopies or renovation sockets.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Verband der Elektrotechnik, Elektronik und Informationstechnik
  • Nominal voltage 450 V
  • Polycarbonate
  • Halogen-free
Technical data

Technical data

Colour Transparent
Connectable conductor cross-section, multi-wire, max. 2,5 mm²
Connectable conductor cross-section, single-wire, max. 2,5 mm²
Dimension 0,2-2,5mm²
Height 8,5 mm
Length 16,3 mm
Material Polycarbonate
No. of terminals 3
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 0,2 mm²
Nominal current 24 A
Nominal voltage 450 V
Number of poles 3
Number of terminals 1
Stripping area AWG, max. 11
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent yes
Width 15,5 mm
With actuating levers yes
All types

All types

Types Number of poles Item no. Quantity SSU
EM129 3 3 905196
100 piece
Downloads

Download

EU declaration of conformity EM129 3 / 905196 , 0.13MB , pdf
