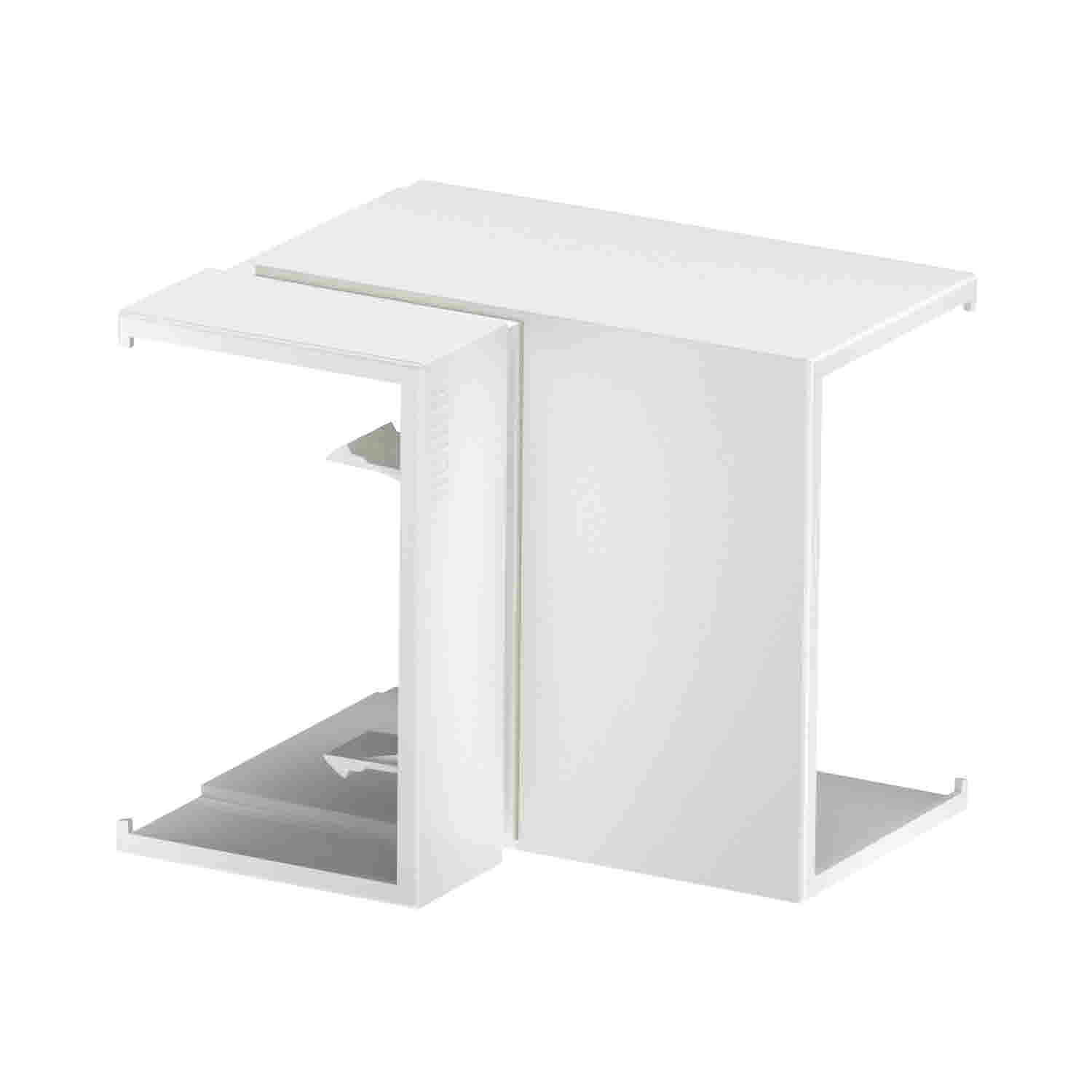

Internal corner Route STYLE (LK018)

Item no. 920048

143 mm
Product description
Product description
Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 93 mm
Angle range, min. 85 mm
Antibacterial treatment no
Cable retaining clip no
Colour Pure white; RAL 9010
Cover mounting type Cross-over
Dimension 120x143x120mm
Duct connector no
Halogen-free yes
Height 120 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Shape Asymmetrical
Version for Hood fitting
Width 143 mm
All types

All types

Types Width Height Item no. Quantity SSU
LK018 70x110 143 mm 120 mm 920048
1 piece
LK018 70x130 143 mm 140 mm 920049
1 piece
LK018 70x170 143 mm 180 mm 920050
1 piece
Downloads

Download

EU declaration of conformity LK018 70x110 / 920048 , 0.13MB , pdf
Download
