Internal corner Route PLUS (LK011) 130 | 130
morepic-1

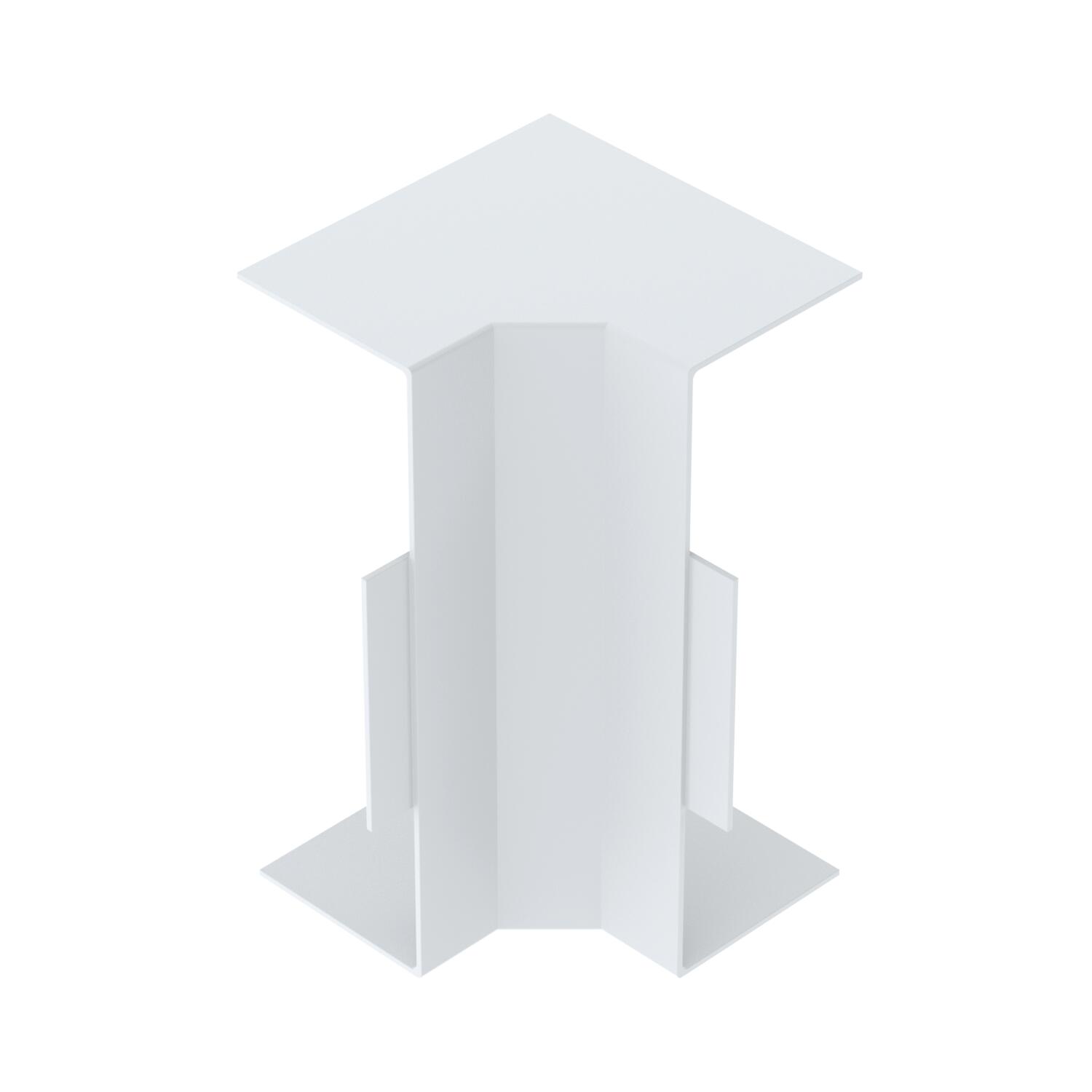

Internal corner Route PLUS (LK011)

Item no. 920032

130 mm
130 mm
Product description
Product description
Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 130x190x130mm
Fastening type Lockable
Halogen-free yes
Height 130 mm
Length 190 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Hood fitting
Width 130 mm
All types

All types

Types Width Height Item no. Quantity SSU
LK011 65x110 130 mm 130 mm 920030
5 piece
LK011 65x150 130 mm 130 mm 920031
5 piece
LK011 65x190 130 mm 130 mm 920032
5 piece
Downloads

Download

EU declaration of conformity LK011 65x190 / 920032 , 0.13MB , pdf
Download
