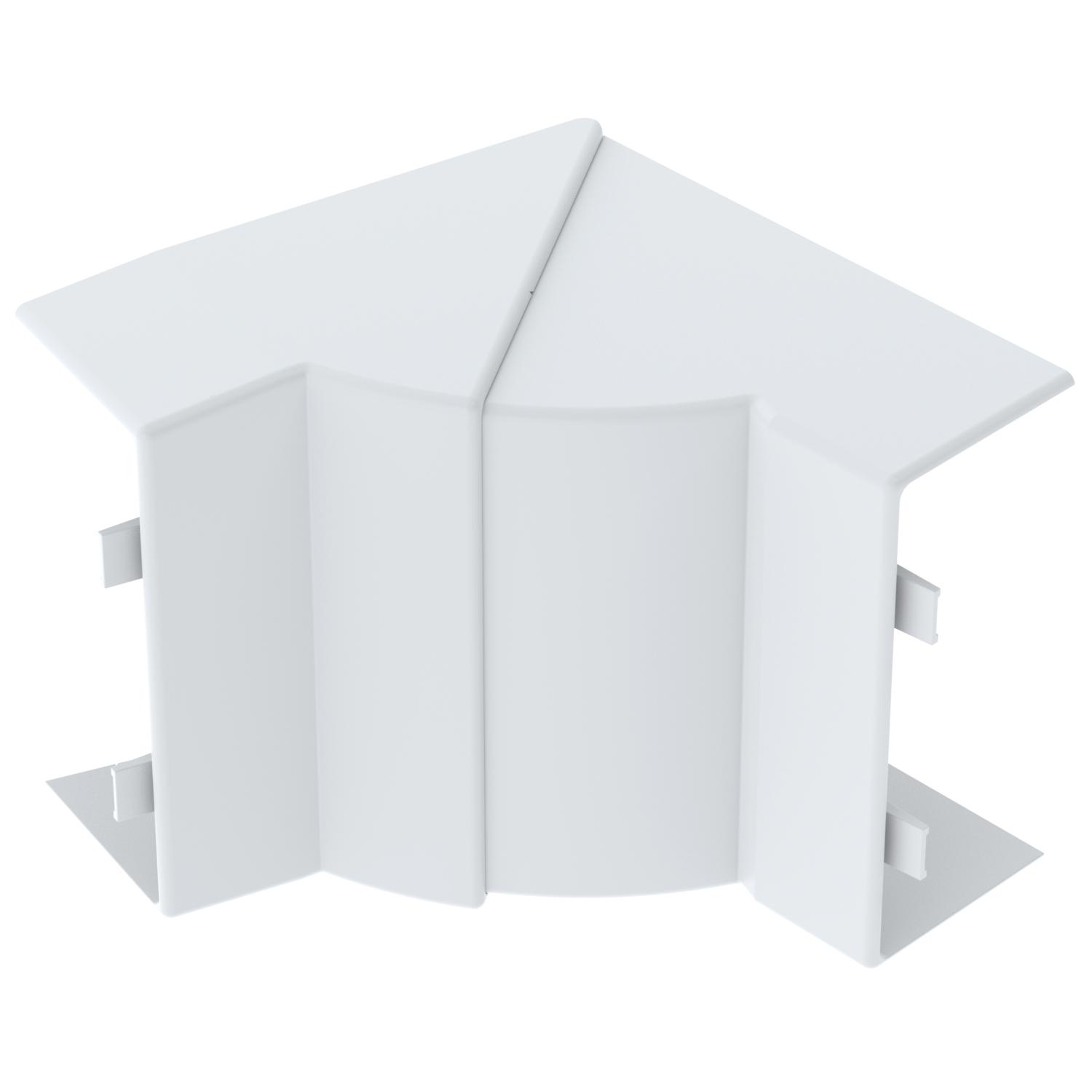

Internal corner Route BASE (LK004)

Item no. 920011

Product description
Product description
Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 105 mm
Angle range, min. 75 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 111x90x111mm
Fastening type Lockable
Halogen-free yes
Height 111 mm
Length 90 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Hood fitting
Width 111 mm
All types

All types

Types Width Height Item no. Quantity SSU
LK004 40x60 111 mm 111 mm 920009
4 piece
LK004 60x60 132 mm 132 mm 920010
4 piece
LK004 40x90 111 mm 111 mm 920011
4 piece
LK004 60x90 132 mm 132 mm 920012
4 piece
Downloads

Download

EU declaration of conformity LK004 40x90 / 920011 , 0.13MB , pdf
