Flat angle Route STYLE (LK021) 170 | 70
morepic-1

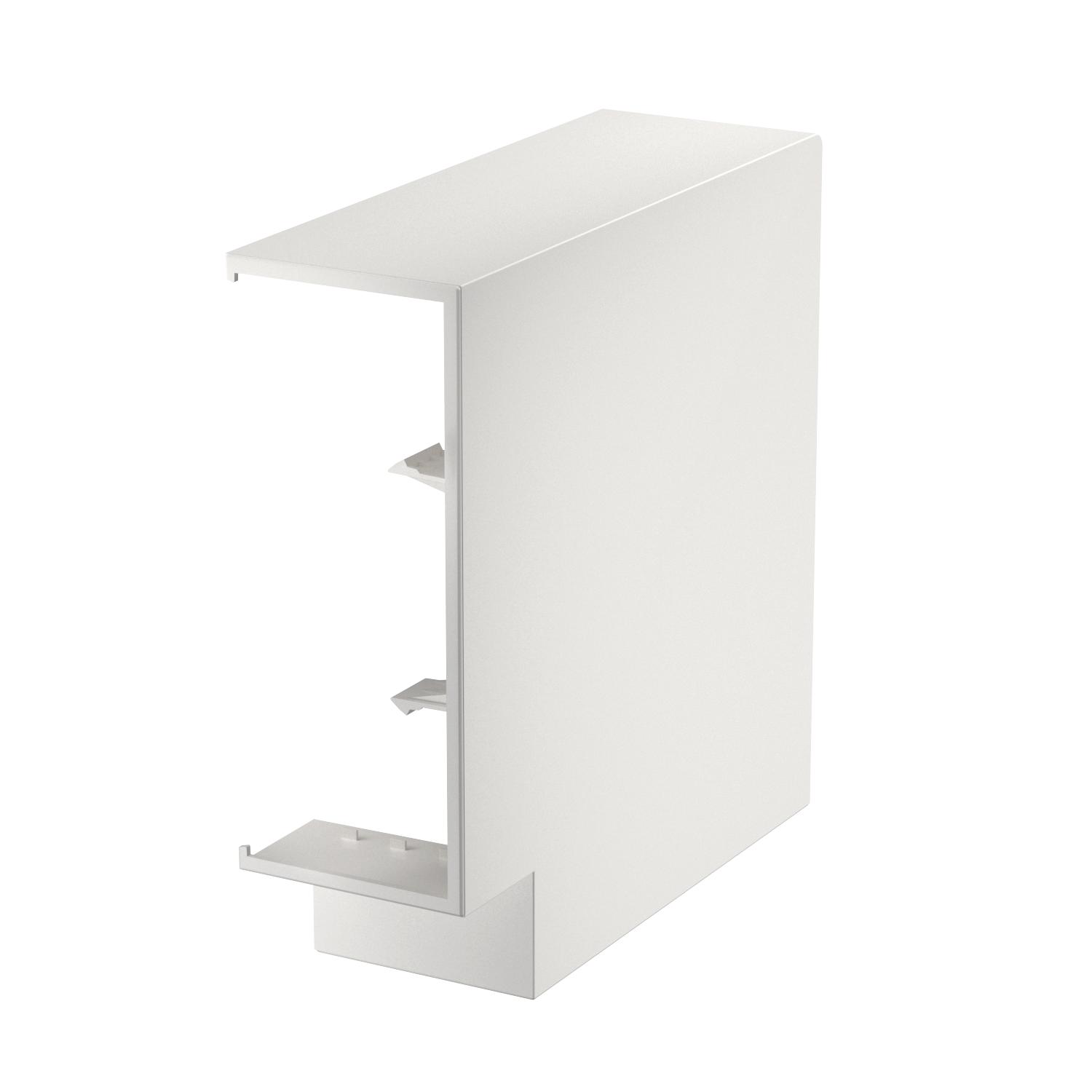

Flat angle Route STYLE (LK021)

Item no. 920059

70 mm
Product description
Product description
For changing direction at a 90° angle on a wall surface
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
Change of direction Vertical, rising/falling
Colour Pure white; RAL 9010
Cover mounting type Cross-over
Dimension 220x220x74mm
Duct connector no
for duct width 170 mm
for trunking height 70 mm
Halogen-free yes
Height 74 mm
Length 220 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Symmetrical yes
Version for Hood fitting
Width 220 mm
All types

All types

Types for duct width for trunking height Item no. Quantity SSU
LK021 70x110 110 mm 70 mm 920057
1 piece
LK021 70x130 130 mm 70 mm 920058
1 piece
LK021 70x170 170 mm 70 mm 920059
1 piece
Downloads

Download

EU declaration of conformity LK021 70x170 / 920059 , 0.13MB , pdf
