Flat angle Route STYLE (LK021) 110 | 70
morepic-1

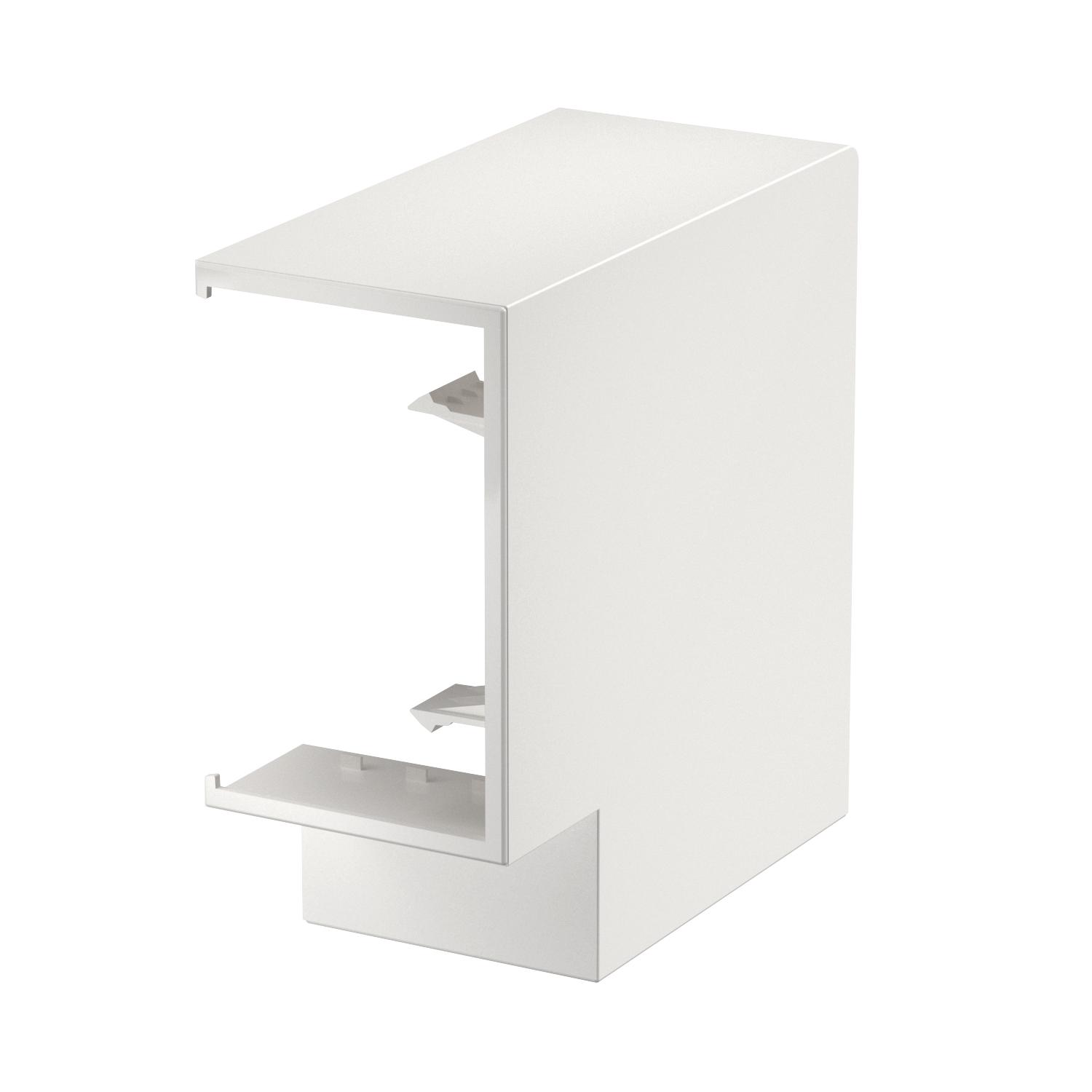

Flat angle Route STYLE (LK021)

Item no. 920057

70 mm
Product description

Product description

For changing direction at a 90° angle on a wall surface
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
Change of direction Vertical, rising/falling
Colour Pure white; RAL 9010
Cover mounting type Cross-over
Dimension 160x160x74mm
Duct connector no
for duct width 110 mm
for trunking height 70 mm
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Symmetrical yes
Version for Hood fitting

Dimensions

Height 74 mm
Length 160 mm
Width 160 mm
All types

All types

Types for duct width for trunking height Item no.
LK021 70x110 110 mm 70 mm 920057
LK021 70x130 130 mm 70 mm 920058
LK021 70x170 170 mm 70 mm 920059
