Flat angle Route BASE (LK007) | | Pure white; RAL 9010
morepic-1

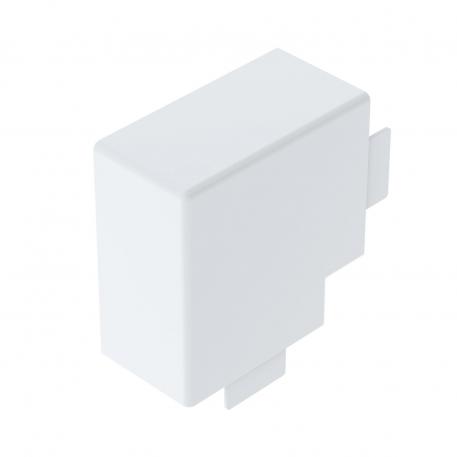

Flat angle Route BASE (LK007)

Item no. 920024

Product description

Product description

For changing direction at a 90° angle on a wall surface
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 135x60x135mm
Fastening type Lockable
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Hood fitting

Dimensions

Height 60 mm
Width 119 mm
All types

All types

Types 0 Item no.
LK007 40x60 920021
LK007 60x60 920022
LK007 40x90 920023
LK007 60x90 920024
Downloads

Download

Declaration of conformity LK007 60x90 / 920024 , 0.13MB , pdf
Download
