External corner Route BASE (LK006) 60x60
morepic-1

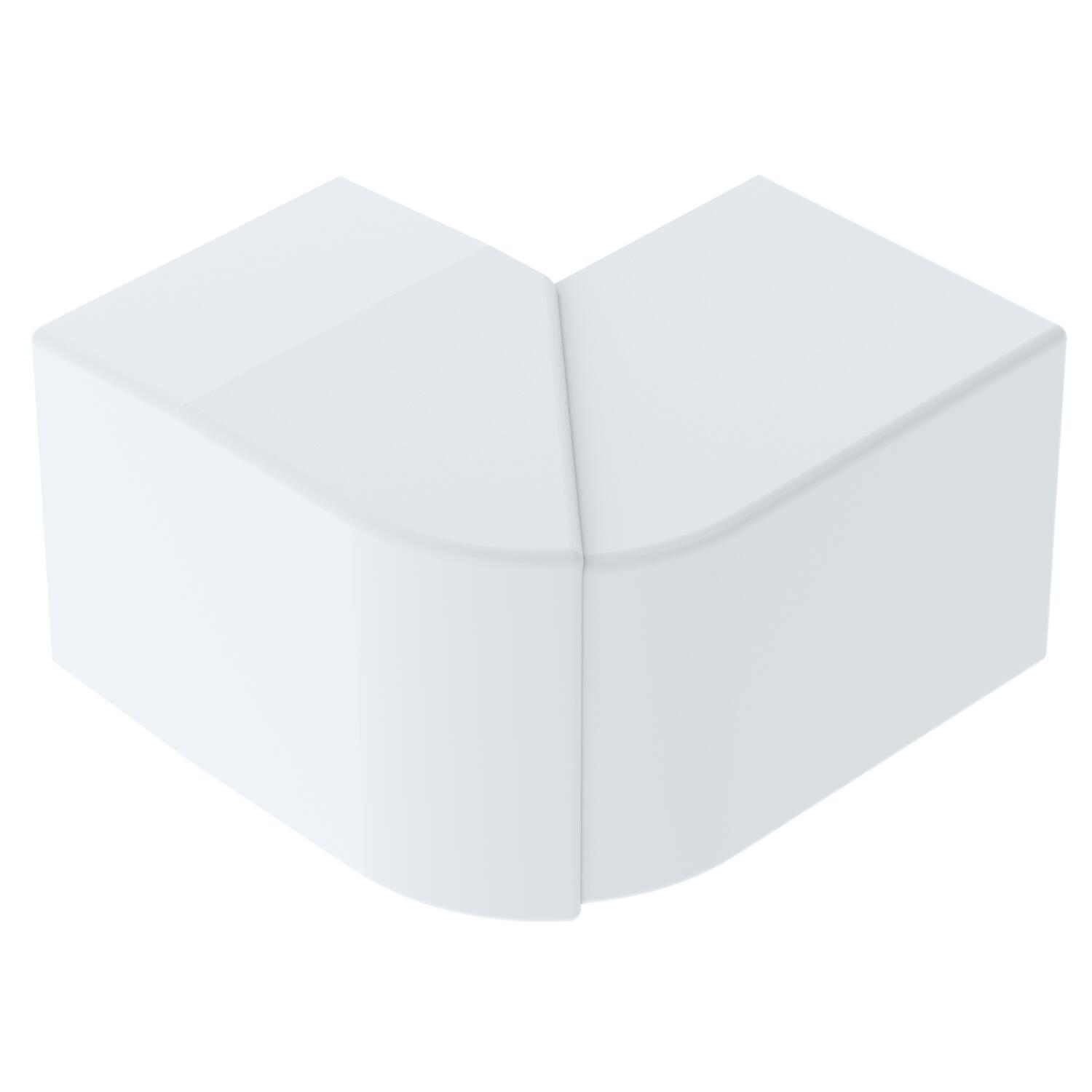

External corner Route BASE (LK006)

Item no. 920018

Product description

Product description

Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 110 mm
Angle range, min. 70 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 100x100x60mm
Fastening type Lockable
for duct dimension 60x60
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Hood fitting
All types

All types

Types for duct dimension Item no.
LK006 40x60 40x60 920017
LK006 60x60 60x60 920018
LK006 40x90 40x90 920019
LK006 60x90 60x90 920020
Downloads

Download

Declaration of conformity LK006 60x60 / 920018 , 0.13MB , pdf
Download
