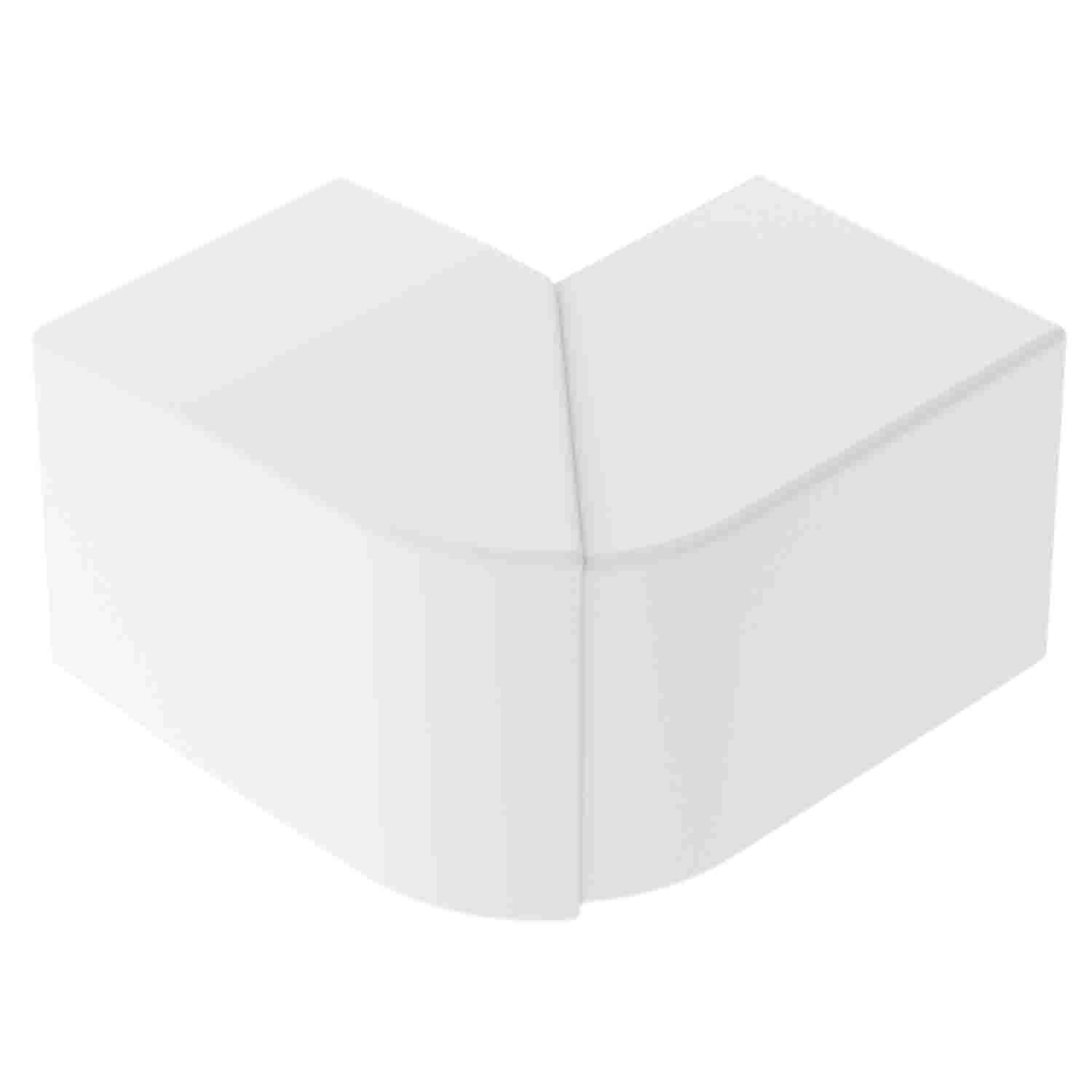

External corner Route BASE (LK006)

Item no. 920019

Product description
Product description
Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 110 mm
Angle range, min. 70 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 100x90x100mm
Fastening type Lockable
for duct dimension 40x90
Halogen-free yes
Height 90 mm
Length 100 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Hood fitting
Width 100 mm
All types

All types

Types for duct dimension Item no. Quantity SSU
LK006 40x60 40x60 920017
4 piece
LK006 60x60 60x60 920018
4 piece
LK006 40x90 40x90 920019
4 piece
LK006 60x90 60x90 920020
4 piece
