External corner Route BASE (LK006) 40x60
morepic-1

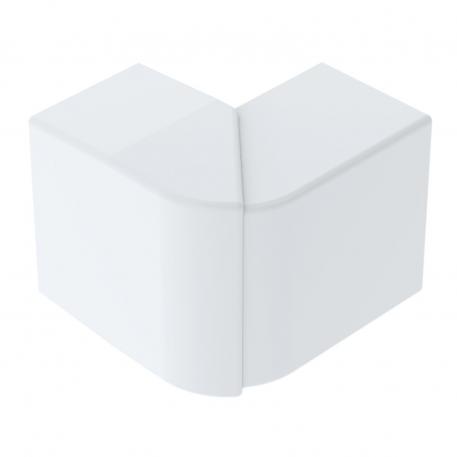

External corner Route BASE (LK006)

Item no. 920017

Product description
Product description
Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 110 mm
Angle range, min. 70 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 100x60x100mm
Fastening type Lockable
for duct dimension 40x60
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Hood fitting
All types

All types

Types for duct dimension Item no. Quantity SSU
LK006 40x60 40x60 920017
4 piece
LK006 60x60 60x60 920018
4 piece
LK006 40x90 40x90 920019
4 piece
LK006 60x90 60x90 920020
4 piece
Downloads

Download

EU declaration of conformity LK006 40x60 / 920017 , 0.13MB , pdf
