End piece Route STYLE (LK019) 130 | 70
morepic-1

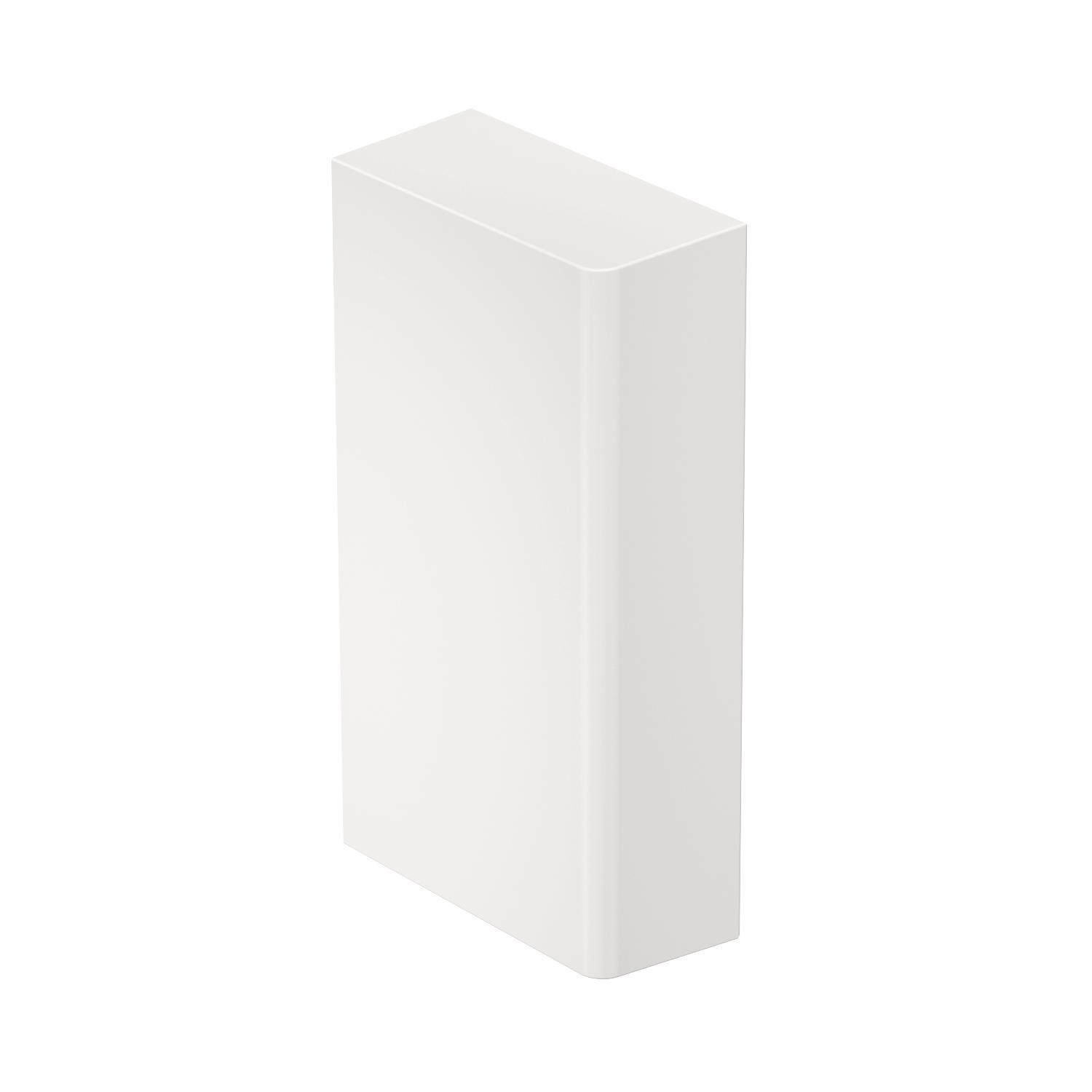

End piece Route STYLE (LK019)

Item no. 920052

70 mm
Product description

Product description

For attaching to close the open duct ends
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Cut lamination yes
Dimension 34x137x73mm
Fastening type Lockable
for duct width 130 mm
for trunking height 70 mm
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Suitable for Left/right
Version for Symmetrical

Dimensions

Height 73 mm
Length 34 mm
Width 134 mm
All types

All types

Types for duct width for trunking height Item no.
LK019 70x110 110 mm 70 mm 920051
LK019 70x130 130 mm 70 mm 920052
LK019 70x170 170 mm 70 mm 920053
Downloads

Download

Declaration of conformity LK019 70x130 / 920052 , 0.13MB , pdf
