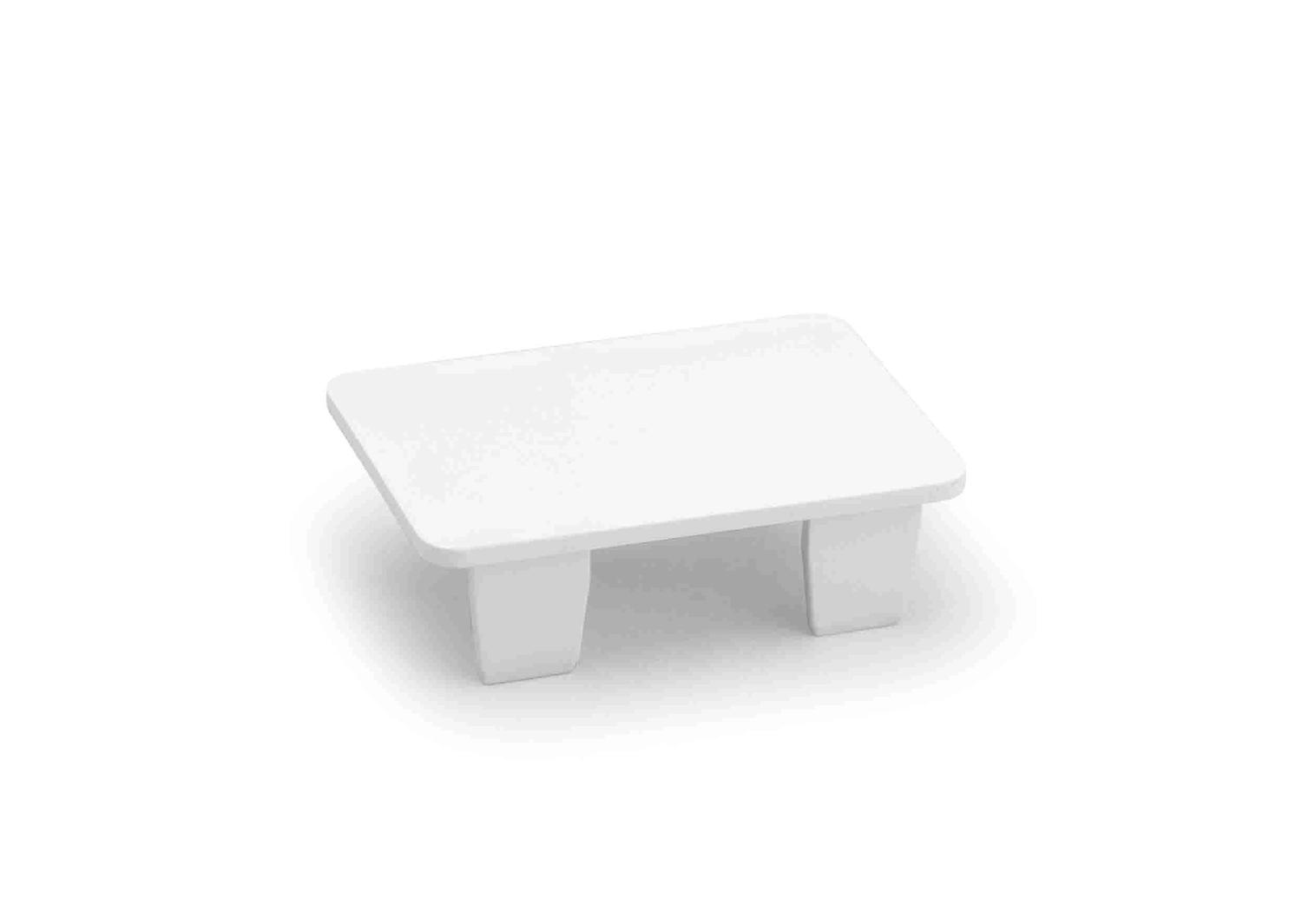

End piece Route PLUS (LK012)

Item no. 920035

65 mm
Product description

Product description

For attaching to close the open duct ends
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 190x65x2mm
Fastening type Lockable
Halogen-free yes
Height 65 mm
Length 2 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right
Width 190 mm
All types

All types

Types Width Height Item no. Quantity SSU
LK012 65x110 110 mm 65 mm 920033
5 piece
LK012 65x150 150 mm 65 mm 920034
5 piece
LK012 65x190 190 mm 65 mm 920035
5 piece
