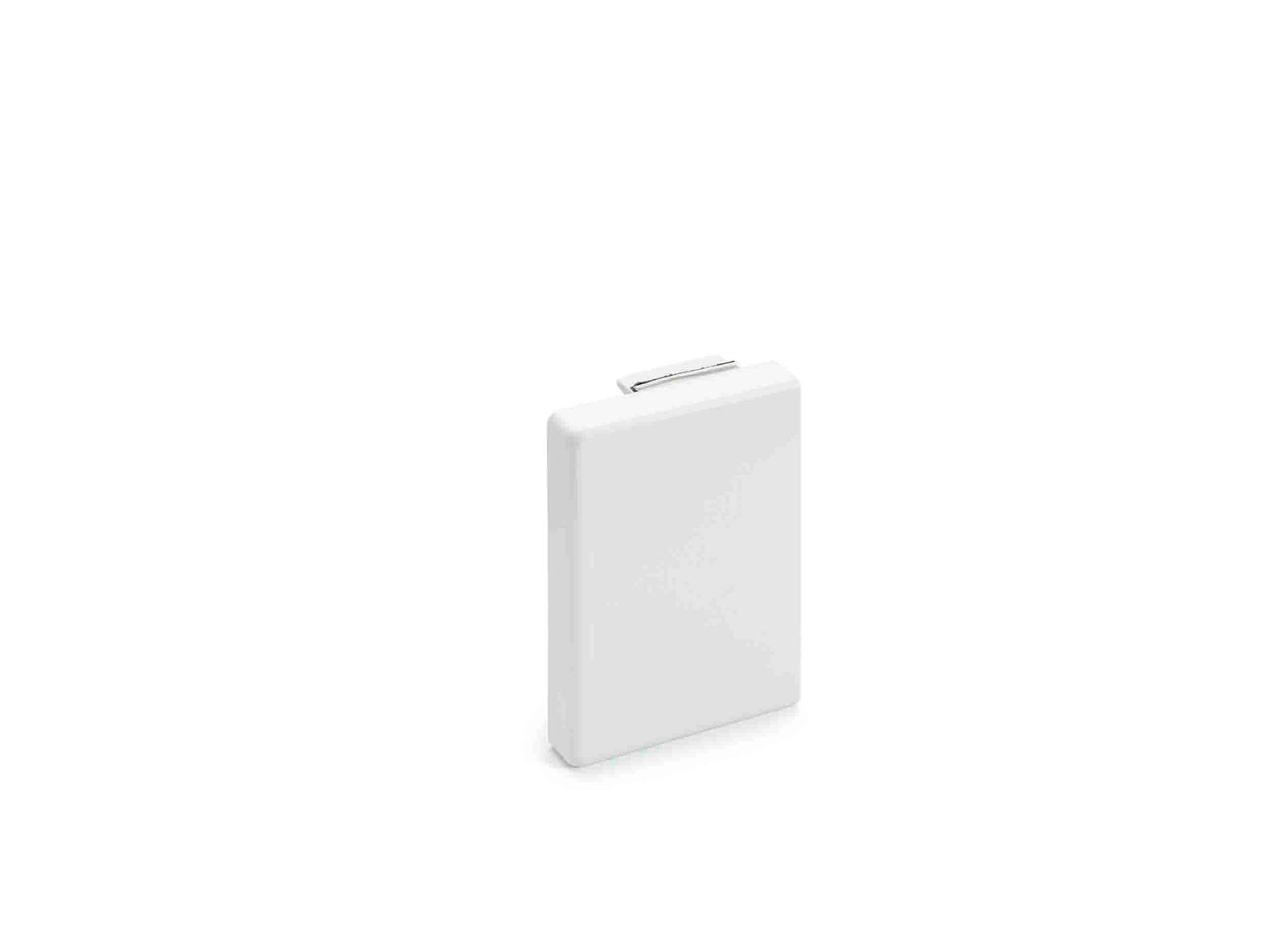

End piece Route BASE (LK005)

Item no. / Types

Width

Height

Product description

Product description

For attaching to close the open duct ends

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	90x61x2mm
Fastening type	Lockable
Halogen-free	yes
Maintain electrical functions	no
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Protective film	no
Version for	Left/right

Height	61 mm
Length	2 mm

Width	90 mm

All types

Types	Width	Height	Item no.
LK005 40x60	60 mm	40 mm	920013
LK005 60x60	60 mm	61 mm	920014
LK005 40x90	90 mm	40 mm	920015
LK005 60x90	90 mm	61 mm	920016

Downloads

Data sheet LK005 60x90 / 920016 , 0.06MB , pdf
