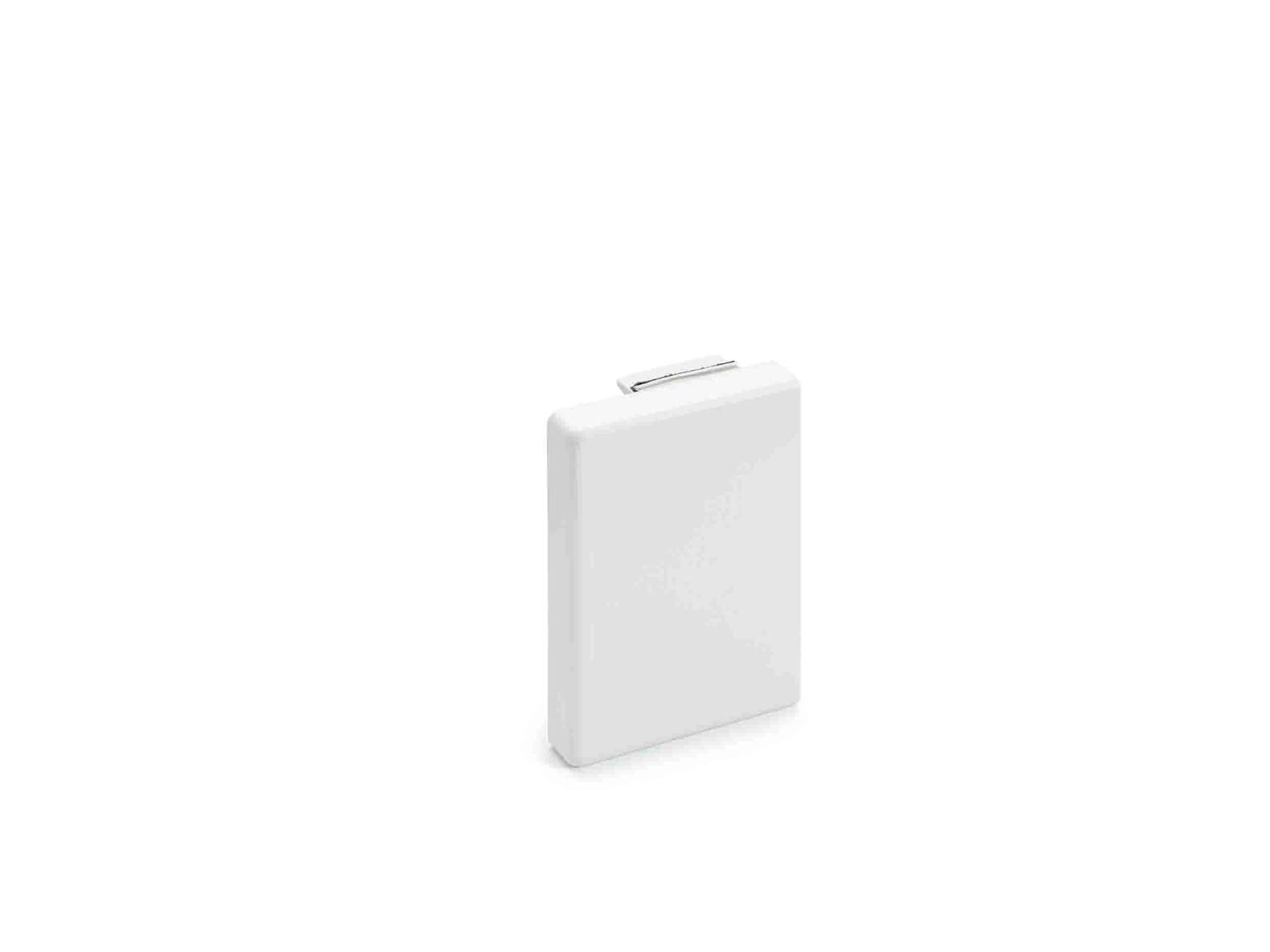

End piece Route BASE (LK005)

Item no. / Types

Width

Height

Product description

Product description

For attaching to close the open duct ends

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	90x40x2mm
Fastening type	Lockable
Halogen-free	yes
Height	40 mm
Length	2 mm
Maintain electrical functions	no

Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Protective film	no
Version for	Left/right
Width	90 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
LK005 40x60	60 mm	40 mm	920013	piece	10 piece
LK005 60x60	60 mm	61 mm	920014	piece	10 piece
LK005 40x90	90 mm	40 mm	920015	piece	10 piece
LK005 60x90	90 mm	61 mm	920016	piece	10 piece
